r0capture安卓应用层抓包通杀脚本通杀所有应用层框架

简介

  • 仅限安卓平台,测试安卓7、8、9、10 可用 ;
  • 无视所有证书校验或绑定,不用考虑任何证书的事情;
  • 通杀TCP/IP四层模型中的应用层中的全部协议;
  • 通杀协议包括:Http,WebSocket,Ftp,Xmpp,Imap,Smtp,Protobuf等等、以及它们的SSL版本;
  • 通杀所有应用层框架,包括HttpUrlConnection、Okhttp1/3/4、Retrofit/Volley等等;

用法

  • Spawn 模式:
python3 r0capture.py -U -f com.qiyi.video
  • Attach 模式,抓包内容保存成pcap文件供后续分析:
python3 r0capture.py -U com.qiyi.video -p iqiyi.pcap

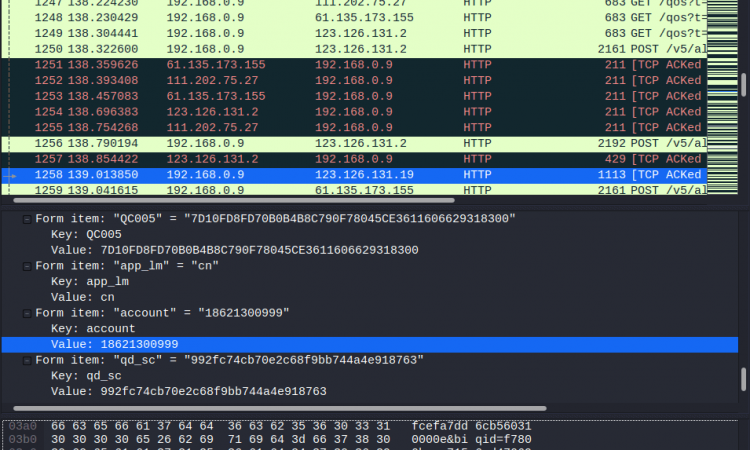

建议使用Attach模式,从感兴趣的地方开始抓包,并且保存成pcap文件,供后续使用Wireshark进行分析。

r0capture安卓应用层抓包通杀脚本通杀所有

PS:

这个项目基于frida_ssl_logger,之所以换个名字,只是侧重点不同。

原项目的侧重点在于抓ssl和跨平台,本项目的侧重点是抓到所有的包。

r0capture.py源码

# Copyright 2017 Google Inc. All Rights Reserved.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
"""Decrypts and logs a process's SSL traffic.
Hooks the functions SSL_read() and SSL_write() in a given process and logs the
decrypted data to the console and/or to a pcap file.
Typical usage example:
ssl_log("wget", "log.pcap", True)
Dependencies:
frida (https://www.frida.re/):
sudo pip install frida
hexdump (https://bitbucket.org/techtonik/hexdump/) if using verbose output:
sudo pip install hexdump
"""
__author__ = "[email protected] (Jason Geffner)"
__version__ = "2.0"
"""
# r0capture
ID: r0ysue
安卓应用层抓包通杀脚本
https://github.com/r0ysue/r0capture
## 简介
- 仅限安卓平台,测试安卓7、8、9、10 可用 ;
- 无视所有证书校验或绑定,无视任何证书;
- 通杀TCP/IP四层模型中的应用层中的全部协议;
- 通杀协议包括:Http,WebSocket,Ftp,Xmpp,Imap,Smtp,Protobuf等等、以及它们的SSL版本;
- 通杀所有应用层框架,包括HttpUrlConnection、Okhttp1/3/4、Retrofit/Volley等等;
"""
# Windows版本需要安装库:
# pip install 'win_inet_pton'
# pip install hexdump
import argparse
import os
import platform
import pprint
import random
import signal
import socket
import struct
import time
import sys
import frida
try:
if os.name == 'nt':
import win_inet_pton
except ImportError:
# win_inet_pton import error
pass
try:
import hexdump  # pylint: disable=g-import-not-at-top
except ImportError:
pass
try:
from shutil import get_terminal_size as get_terminal_size
except:
try:
from backports.shutil_get_terminal_size import get_terminal_size as get_terminal_size
except:
pass
try:
import click
except:
class click:
@staticmethod
def secho(message=None, **kwargs):
print(message)
@staticmethod
def style(**kwargs):
raise Exception("unsupported style")
banner = """
--------------------------------------------------------------------------------------------
.oooo.                                      .
d8P'`Y8b                                   .o8
oooo d8b 888    888  .ooooo.   .oooo.   oo.ooooo.  .o888oo oooo  oooo  oooo d8b  .ooooo.
`888""8P 888    888 d88' `"Y8 `P  )88b   888' `88b   888   `888  `888  `888""8P d88' `88b
888     888    888 888        .oP"888   888   888   888    888   888   888     888ooo888
888     `88b  d88' 888   .o8 d8(  888   888   888   888 .  888   888   888     888    .o
d888b     `Y8bd8P'  `Y8bod8P' `Y888""8o  888bod8P'   "888"  `V88V"V8P' d888b    `Y8bod8P'
888
o888o
https://github.com/r0ysue/r0capture
--------------------------------------------------------------------------------------------\n
"""
def show_banner():
colors = ['bright_red', 'bright_green', 'bright_blue', 'cyan', 'magenta']
try:
click.style('color test', fg='bright_red')
except:
colors = ['red', 'green', 'blue', 'cyan', 'magenta']
try:
columns = get_terminal_size().columns
if columns >= len(banner.splitlines()[1]):
for line in banner.splitlines():
click.secho(line, fg=random.choice(colors))
except:
pass
# ssl_session[<SSL_SESSION id>] = (<bytes sent by client>,
#                                  <bytes sent by server>)
ssl_sessions = {}
def ssl_log(process, pcap=None, verbose=False, isUsb=False, ssllib="", isSpawn=True, wait=0):
"""Decrypts and logs a process's SSL traffic.
Hooks the functions SSL_read() and SSL_write() in a given process and logs
the decrypted data to the console and/or to a pcap file.
Args:
process: The target process's name (as a string) or process ID (as an int).
pcap: The file path to which the pcap file should be written.
verbose: If True, log the decrypted traffic to the console.
Raises:
NotImplementedError: Not running on a Linux or macOS system.
"""
# if platform.system() not in ("Darwin", "Linux"):
#   raise NotImplementedError("This function is only implemented for Linux and "
#                             "macOS systems.")
def log_pcap(pcap_file, ssl_session_id, function, src_addr, src_port,
dst_addr, dst_port, data):
"""Writes the captured data to a pcap file.
Args:
pcap_file: The opened pcap file.
ssl_session_id: The SSL session ID for the communication.
function: The function that was intercepted ("SSL_read" or "SSL_write").
src_addr: The source address of the logged packet.
src_port: The source port of the logged packet.
dst_addr: The destination address of the logged packet.
dst_port: The destination port of the logged packet.
data: The decrypted packet data.
"""
t = time.time()
if ssl_session_id not in ssl_sessions:
ssl_sessions[ssl_session_id] = (random.randint(0, 0xFFFFFFFF),
random.randint(0, 0xFFFFFFFF))
client_sent, server_sent = ssl_sessions[ssl_session_id]
if function == "SSL_read":
seq, ack = (server_sent, client_sent)
else:
seq, ack = (client_sent, server_sent)
for writes in (
# PCAP record (packet) header
("=I", int(t)),  # Timestamp seconds
("=I", int((t * 1000000) % 1000000)),  # Timestamp microseconds
("=I", 40 + len(data)),  # Number of octets saved
("=i", 40 + len(data)),  # Actual length of packet
# IPv4 header
(">B", 0x45),  # Version and Header Length
(">B", 0),  # Type of Service
(">H", 40 + len(data)),  # Total Length
(">H", 0),  # Identification
(">H", 0x4000),  # Flags and Fragment Offset
(">B", 0xFF),  # Time to Live
(">B", 6),  # Protocol
(">H", 0),  # Header Checksum
(">I", src_addr),  # Source Address
(">I", dst_addr),  # Destination Address
# TCP header
(">H", src_port),  # Source Port
(">H", dst_port),  # Destination Port
(">I", seq),  # Sequence Number
(">I", ack),  # Acknowledgment Number
(">H", 0x5018),  # Header Length and Flags
(">H", 0xFFFF),  # Window Size
(">H", 0),  # Checksum
(">H", 0)):  # Urgent Pointer
pcap_file.write(struct.pack(writes[0], writes[1]))
pcap_file.write(data)
if function == "SSL_read":
server_sent += len(data)
else:
client_sent += len(data)
ssl_sessions[ssl_session_id] = (client_sent, server_sent)
def on_message(message, data):
"""Callback for errors and messages sent from Frida-injected JavaScript.
Logs captured packet data received from JavaScript to the console and/or a
pcap file. See https://www.frida.re/docs/messages/ for more detail on
Frida's messages.
Args:
message: A dictionary containing the message "type" and other fields
dependent on message type.
data: The string of captured decrypted data.
"""
if message["type"] == "error":
pprint.pprint(message)
os.kill(os.getpid(), signal.SIGTERM)
return
if len(data) == 0:
return
p = message["payload"]
if verbose:
src_addr = socket.inet_ntop(socket.AF_INET,
struct.pack(">I", p["src_addr"]))
dst_addr = socket.inet_ntop(socket.AF_INET,
struct.pack(">I", p["dst_addr"]))
print("SSL Session: " + p["ssl_session_id"])
print("[%s] %s:%d --> %s:%d" % (
p["function"],
src_addr,
p["src_port"],
dst_addr,
p["dst_port"]))
hexdump.hexdump(data)
print()
if pcap:
log_pcap(pcap_file, p["ssl_session_id"], p["function"], p["src_addr"],
p["src_port"], p["dst_addr"], p["dst_port"], data)
if isUsb:
device = frida.get_usb_device()
# session = device.attach(process)
else:
device = frida.get_local_device()
if isSpawn:
pid = device.spawn([process])
time.sleep(1)
session = device.attach(pid)
time.sleep(1)
device.resume(pid)
else:
print("attach")
session = device.attach(process)
if wait > 0:
print("wait for {} seconds".format(wait))
time.sleep(wait)
# session = frida.attach(process)
# pid = device.spawn([process])
# pid = process
# session = device.attach(pid)
# device.resume(pid)
if pcap:
pcap_file = open(pcap, "wb", 0)
for writes in (
("=I", 0xa1b2c3d4),  # Magic number
("=H", 2),  # Major version number
("=H", 4),  # Minor version number
("=i", time.timezone),  # GMT to local correction
("=I", 0),  # Accuracy of timestamps
("=I", 65535),  # Max length of captured packets
("=I", 228)):  # Data link type (LINKTYPE_IPV4)
pcap_file.write(struct.pack(writes[0], writes[1]))
with open("./script.js", encoding="utf-8") as f:
_FRIDA_SCRIPT = f.read()
# _FRIDA_SCRIPT = session.create_script(content)
# print(_FRIDA_SCRIPT)
script = session.create_script(_FRIDA_SCRIPT)
script.on("message", on_message)
script.load()
if ssllib != "":
script.exports.setssllib(ssllib)
print("Press Ctrl+C to stop logging.")
def stoplog(signum, frame):
print('You have stoped logging.')
session.detach()
if pcap:
pcap_file.flush()
pcap_file.close()
exit()
signal.signal(signal.SIGINT, stoplog)
signal.signal(signal.SIGTERM, stoplog)
sys.stdin.read()
if __name__ == "__main__":
show_banner()
class ArgParser(argparse.ArgumentParser):
def error(self, message):
print("ssl_logger v" + __version__)
print("by " + __author__)
print("Modified by BigFaceCat")
print("Error: " + message)
print()
print(self.format_help().replace("usage:", "Usage:"))
self.exit(0)
parser = ArgParser(
add_help=False,
description="Decrypts and logs a process's SSL traffic.",
formatter_class=argparse.RawDescriptionHelpFormatter,
epilog=r"""
Examples:
%(prog)s -pcap ssl.pcap openssl
%(prog)s -verbose 31337
%(prog)s -pcap log.pcap -verbose wget
%(prog)s -pcap log.pcap -ssl "*libssl.so*" com.bigfacecat.testdemo
""")
args = parser.add_argument_group("Arguments")
args.add_argument("-pcap", '-p', metavar="<path>", required=False,
help="Name of PCAP file to write")
args.add_argument("-verbose","-v",  required=False, action="store_const", default=True,
const=True, help="Show verbose output")
args.add_argument("process", metavar="<process name | process id>",
help="Process whose SSL calls to log")
args.add_argument("-ssl", default="", metavar="<lib>",
help="SSL library to hook")
args.add_argument("--isUsb", "-U", default=False, action="store_true",
help="connect to USB device")
args.add_argument("--isSpawn", "-f", default=False, action="store_true",
help="if spawned app")
args.add_argument("-wait", "-w", type=int, metavar="<seconds>", default=0,
help="Time to wait for the process")
parsed = parser.parse_args()
ssl_log(int(parsed.process) if parsed.process.isdigit() else parsed.process, parsed.pcap, parsed.verbose, isUsb=parsed.isUsb, isSpawn=parsed.isSpawn, ssllib=parsed.ssl, wait=parsed.wait)

script.js源码

/**
* Initializes 'addresses' dictionary and NativeFunctions.
*/
"use strict";
rpc.exports = {
setssllib: function (name) {
console.log("setSSLLib => " + name);
libname = name;
initializeGlobals();
return;
}
};
var addresses = {};
var SSL_get_fd = null;
var SSL_get_session = null;
var SSL_SESSION_get_id = null;
var getpeername = null;
var getsockname = null;
var ntohs = null;
var ntohl = null;
var libname = "*libssl*";
function return_zero(args) {
return 0;
}
function initializeGlobals() {
var resolver = new ApiResolver("module");
var exps = [
[Process.platform == "darwin" ? "*libboringssl*" : "*libssl*", ["SSL_read", "SSL_write", "SSL_get_fd", "SSL_get_session", "SSL_SESSION_get_id"]], // for ios and Android
[Process.platform == "darwin" ? "*libsystem*" : "*libc*", ["getpeername", "getsockname", "ntohs", "ntohl"]]
];
// console.log(exps)
for (var i = 0; i < exps.length; i++) {
var lib = exps[i][0];
var names = exps[i][1];
for (var j = 0; j < names.length; j++) {
var name = names[j];
// console.log("exports:" + lib + "!" + name)
var matches = resolver.enumerateMatchesSync("exports:" + lib + "!" + name);
if (matches.length == 0) {
if (name == "SSL_get_fd") {
addresses["SSL_get_fd"] = 0;
continue;
}
throw "Could not find " + lib + "!" + name;
}
else if (matches.length != 1) {
// Sometimes Frida returns duplicates.
var address = 0;
var s = "";
var duplicates_only = true;
for (var k = 0; k < matches.length; k++) {
if (s.length != 0) {
s += ", ";
}
s += matches[k].name + "@" + matches[k].address;
if (address == 0) {
address = matches[k].address;
}
else if (!address.equals(matches[k].address)) {
duplicates_only = false;
}
}
if (!duplicates_only) {
throw "More than one match found for " + lib + "!" + name + ": " + s;
}
}
addresses[name] = matches[0].address;
}
}
if (addresses["SSL_get_fd"] == 0) {
SSL_get_fd = return_zero;
} else {
SSL_get_fd = new NativeFunction(addresses["SSL_get_fd"], "int", ["pointer"]);
}
SSL_get_session = new NativeFunction(addresses["SSL_get_session"], "pointer", ["pointer"]);
SSL_SESSION_get_id = new NativeFunction(addresses["SSL_SESSION_get_id"], "pointer", ["pointer", "pointer"]);
getpeername = new NativeFunction(addresses["getpeername"], "int", ["int", "pointer", "pointer"]);
getsockname = new NativeFunction(addresses["getsockname"], "int", ["int", "pointer", "pointer"]);
ntohs = new NativeFunction(addresses["ntohs"], "uint16", ["uint16"]);
ntohl = new NativeFunction(addresses["ntohl"], "uint32", ["uint32"]);
}
initializeGlobals();
function ipToNumber(ip) {
var num = 0;
if (ip == "") {
return num;
}
var aNum = ip.split(".");
if (aNum.length != 4) {
return num;
}
num += parseInt(aNum[0]) << 0;
num += parseInt(aNum[1]) << 8;
num += parseInt(aNum[2]) << 16;
num += parseInt(aNum[3]) << 24;
num = num >>> 0;//这个很关键,不然可能会出现负数的情况
return num;
}
/**
* Returns a dictionary of a sockfd's "src_addr", "src_port", "dst_addr", and
* "dst_port".
* @param {int} sockfd The file descriptor of the socket to inspect.
* @param {boolean} isRead If true, the context is an SSL_read call. If
*     false, the context is an SSL_write call.
* @return {dict} Dictionary of sockfd's "src_addr", "src_port", "dst_addr",
*     and "dst_port".
*/
function getPortsAndAddresses(sockfd, isRead) {
var message = {};
var src_dst = ["src", "dst"];
for (var i = 0; i < src_dst.length; i++) {
if ((src_dst[i] == "src") ^ isRead) {
var sockAddr = Socket.localAddress(sockfd)
}
else {
var sockAddr = Socket.peerAddress(sockfd)
}
if (sockAddr == null) {
// 网络超时or其他原因可能导致socket被关闭
message[src_dst[i] + "_port"] = 0
message[src_dst[i] + "_addr"] = 0
} else {
message[src_dst[i] + "_port"] = (sockAddr.port & 0xFFFF)
message[src_dst[i] + "_addr"] = ntohl(ipToNumber(sockAddr.ip.split(":").pop()))
}
}
return message;
}
/**
* Get the session_id of SSL object and return it as a hex string.
* @param {!NativePointer} ssl A pointer to an SSL object.
* @return {dict} A string representing the session_id of the SSL object's
*     SSL_SESSION. For example,
*     "59FD71B7B90202F359D89E66AE4E61247954E28431F6C6AC46625D472FF76336".
*/
function getSslSessionId(ssl) {
var session = SSL_get_session(ssl);
if (session == 0) {
return 0;
}
var len = Memory.alloc(4);
var p = SSL_SESSION_get_id(session, len);
len = Memory.readU32(len);
var session_id = "";
for (var i = 0; i < len; i++) {
// Read a byte, convert it to a hex string (0xAB ==> "AB"), and append
// it to session_id.
session_id +=
("0" + Memory.readU8(p.add(i)).toString(16).toUpperCase()).substr(-2);
}
return session_id;
}
Interceptor.attach(addresses["SSL_read"],
{
onEnter: function (args) {
var message = getPortsAndAddresses(SSL_get_fd(args[0]), true);
message["ssl_session_id"] = getSslSessionId(args[0]);
message["function"] = "SSL_read";
this.message = message;
this.buf = args[1];
},
onLeave: function (retval) {
retval |= 0; // Cast retval to 32-bit integer.
if (retval <= 0) {
return;
}
send(this.message, Memory.readByteArray(this.buf, retval));
}
});
Interceptor.attach(addresses["SSL_write"],
{
onEnter: function (args) {
var message = getPortsAndAddresses(SSL_get_fd(args[0]), false);
message["ssl_session_id"] = getSslSessionId(args[0]);
message["function"] = "SSL_write";
send(message, Memory.readByteArray(args[1], parseInt(args[2])));
},
onLeave: function (retval) {
}
});
if (Java.available) {
Java.perform(function () {
Java.use("java.net.SocketOutputStream").socketWrite0.overload('java.io.FileDescriptor', '[B', 'int', 'int').implementation = function (fd, bytearry, offset, byteCount) {
var result = this.socketWrite0(fd, bytearry, offset, byteCount);
var message = {};
message["function"] = "HTTP_send";
message["ssl_session_id"] = "";
message["src_addr"] = ntohl(ipToNumber((this.socket.value.getLocalAddress().toString().split(":")[0]).split("/").pop()));
message["src_port"] = parseInt(this.socket.value.getLocalPort().toString());
message["dst_addr"] = ntohl(ipToNumber((this.socket.value.getRemoteSocketAddress().toString().split(":")[0]).split("/").pop()));
message["dst_port"] = parseInt(this.socket.value.getRemoteSocketAddress().toString().split(":").pop());
var ptr = Memory.alloc(byteCount);
for (var i = 0; i < byteCount; ++i)
Memory.writeS8(ptr.add(i), bytearry[offset + i]);
send(message, Memory.readByteArray(ptr, byteCount))
return result;
}
Java.use("java.net.SocketInputStream").socketRead0.overload('java.io.FileDescriptor', '[B', 'int', 'int', 'int').implementation = function (fd, bytearry, offset, byteCount, timeout) {
var result = this.socketRead0(fd, bytearry, offset, byteCount, timeout);
var message = {};
message["function"] = "HTTP_recv";
message["ssl_session_id"] = "";
message["src_addr"] = ntohl(ipToNumber((this.socket.value.getRemoteSocketAddress().toString().split(":")[0]).split("/").pop()));
message["src_port"] = parseInt(this.socket.value.getRemoteSocketAddress().toString().split(":").pop());
message["dst_addr"] = ntohl(ipToNumber((this.socket.value.getLocalAddress().toString().split(":")[0]).split("/").pop()));
message["dst_port"] = parseInt(this.socket.value.getLocalPort());
if (result > 0) {
var ptr = Memory.alloc(result);
for (var i = 0; i < result; ++i)
Memory.writeS8(ptr.add(i), bytearry[offset + i]);
send(message, Memory.readByteArray(ptr, result))
}
return result;
}
})
}

以下是原项目的简介:

github.com/BigFaceCat2017/frida_ssl_logger

frida_ssl_logger

ssl_logger based on frida for from
https://github.com/google/ssl_logger

修改内容

  1. 优化了frida的JS脚本,修复了在新版frida上的语法错误;
  2. 调整JS脚本,使其适配iOS和macOS,同时也兼容了Android;
  3. 增加了更多的选项,使其能在多种情况下使用;

Usage

  python3 ./ssl_logger.py  -U -f com.bfc.mm
python3 ./ssl_logger.py -v  -p test.pcap  6666

GitHub 地址

https://github.com/r0ysue/r0capture

Leave a Reply

您的电子邮箱地址不会被公开。 必填项已用*标注
